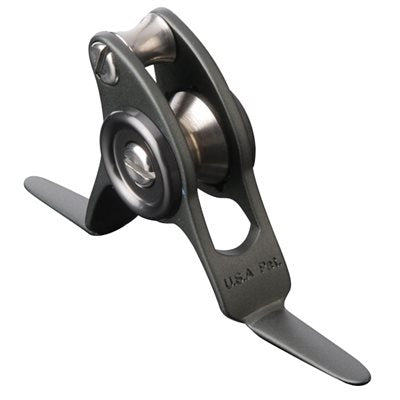

ALPS 80lb. Roller Guide – 6061 T-6 Aluminum/SS316 Stainless Steel

Regular price $52.95 Sale

Part #

Colour

Quantity

The flagship of ALPS roller guides are the 80lb. class roller guides. Precision CNC machined from 6061 T-6 marine grade billet aluminum, the frames of these roller guides are not only strong but extreme corrosion resistant. All other critical parts are SS316 stainless steel, including the screws, axle pin, and rollers, providing the same extreme corrosion resistance. Each axle pin has a custom teflon bushing that will reduce friction. As an added bonus, ALPS has an optional Japanese ball bearing, to nearly eliminate any friction and allow outstanding roller performance.

SCROLL LEFT OR RIGHT FOR FULL DETAILS

Japanese Ball Bearings
GUIDE SIZES	LENGTH (MM)	LENGTH (IN)	HEIGHT (MM)	HEIGHT (IN)	WEIGHT (GRAINS)	WEIGHT (oz)
01L	78.32	3.08	37.56	1.48	311.4	0.712
02L	85.95	3.38	40.5	1.59	321.5	0.735
02	86.88	3.42	40.75	1.6	336.8	0.77
03	91.2	3.59	46.03	1.81	357.5	0.817
05LW	116.7	4.59	54.622	2.15	697.9	1.595

Bushing Model
GUIDE SIZES	LENGTH (MM)	LENGTH (IN)	HEIGHT (MM)	HEIGHT (IN)	WEIGHT (GRAINS)	WEIGHT (oz)
01L	78.32	3.08	37.56	1.48	340	0.78
02L	85.95	3.38	40.5	1.59	344	0.79
02	86.88	3.42	40.75	1.6	362	0.83
03	91.2	3.59	46.03	1.81	384	0.88
05LW	116.7	4.59	54.622	2.15	768	1.76
