ForeCast UD-Guide Black/Charcoal
Regular price
$1.95
Sale

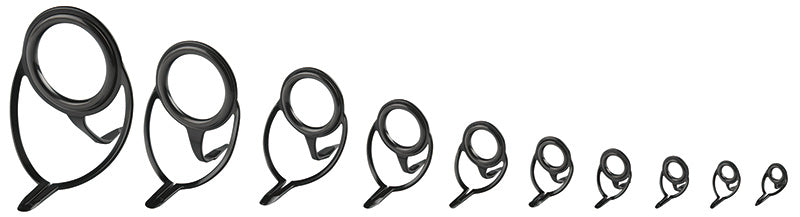

Tried and true, the ForeCast UD guides have been the industry standard frame for many years. From it’s brilliant frame design to its incredibly hard ring, these guides are perfect for the budget concerned who require the strength to deliver. Basing the frame material off of SS304 stainless steel and using either zirconium(PVD plated), zirconium, or hard aluminum oxide rings, you can count on the ForeCast UD guides time after time. ForeCast UD guides were designed for any casting rod rated for 10-25lb test line. The beautiful light titanium smoke frame matched with the zirconium rings in blue, gold, and chameleon are unique to this casting guide lineup.
SCROLL LEFT OR RIGHT FOR FULL DETAILS
| GUIDE SIZES | RING SIZE (MM OD) | RING SIZE (MM ID) | LENGTH (MM) | LENGTH (IN) | HEIGHT (MM) | HEIGHT (IN) | WEIGHT (GRAINS) | WEIGHT (oz) |
| 6 | 6 | 4.1 | 19.27 | 0.758 | 10.60 | 0.418 | 3.2 | 0.007 |
| 7 | 7 | 4.6 | 19.85 | 0.782 | 12.12 | 0.478 | 6.7 | 0.015 |
| 8 | 8 | 5.5 | 20.55 | 0.809 | 14.28 | 0.562 | 9.4 | 0.021 |
| 10 | 10 | 6.9 | 23.20 | 0.913 | 15.80 | 0.622 | 14.1 | 0.032 |
| 12 | 12 | 8.3 | 28.90 | 1.140 | 18.00 | 0.709 | 20.1 | 0.045 |
| 16 | 16 | 10.8 | 35.15 | 1.380 | 22.70 | 0.893 | 28.3 | 0.064 |
| 20 | 20 | 13.9 | 43.35 | 1.700 | 29.60 | 1.160 | 49.6 | 0.113 |
| 25 | 25 | 17.6 | 53.50 | 2.100 | 37.45 | 1.470 | 76.7 | 0.175 |
| 30 | 30 | 23.4 | 58.00 | 2.280 | 48.45 | 1.900 | 114.5 | 0.262 |
| 40 | 40 | 28.3 | 70.00 | 2.750 | 61.45 | 2.420 | 198.6 | 0.454 |
